Features & Benefits

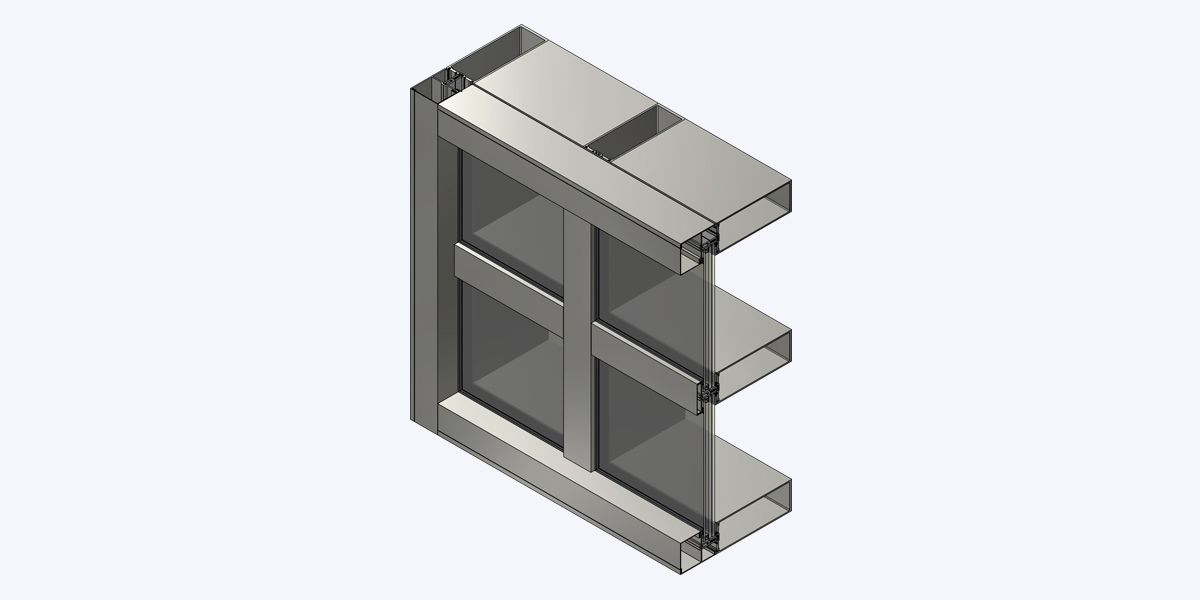

• 11" Nominal unitized curtainwall system.
• 4" vertical and horizontal snap covers.
• Shop glazed for greater quality control.
• Thermally improved system for optimal energy efficiency.
• Thermal simulations available upon request.
• Configuration options include: Conventional, 2- Sided/4-Sided Structurally Glazed or Unitized.
• 45 Degree corner mulls.
Two tone options available for different interior and exterior colors.
Installation options include single span and multi-span panels.
• Single Span Max dp for 43 1/2 x 147 1/4" panel = +92/-143 psf
• Multi Span Max dp for 43 1/2 x 216" panel = +92/-143 psf
Male/Female jambs.
All fasteners 18-8 stainless steel.
Meets FBC small and large missile impact protocols.
Glazing options range from 9/16" laminated to 1 1/4" insulated laminated.
Concealed installation fasteners.
Joints sealed with Dow Corning Silicone.
2-Sided and 4-Sided structurally glazed systems available.
